SWITCHGEAR AND PANEL

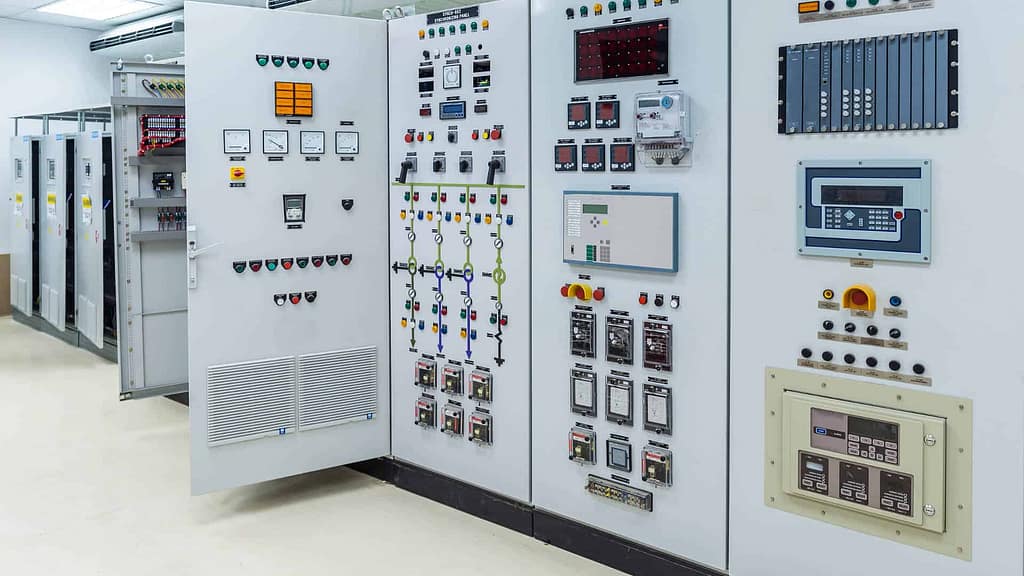

CONTROL, RELAY & PROTECTION PANEL UP TO 400KV FOR TRANSFORMER FEEDER

Transformer protection and control panel consists of all sorts of control, protection, metering and monitoring of the transformer feeder. This panel is a combination of transformer differential protection, over current, earth fault and restricted earth fault relays associated with other auxiliary relays in the protection part of the panel. We have flexibility to customize the requirement for any special scheme requirement. In the control panel parts we are providing all sorts of metering like ampere, voltage, megawatt, mega var etc. We use standard annunciator module, discrepancy control switches and different types of control switches as per scheme requirements. Remote monitoring capabilities are also available and transfer of analog and digital data from control panel to SCADA system is also possible. CONTROL, RELAY & PROTECTION PANEL consists of:
1. Transformer Feeder
2. Incoming & Outgoing Feeders
3. Bus Coupler
4. Busbar Protection Panel,
5. Automation Panel

AC-DC DISTRIBUTION PANEL

We manufactures AC & DC Distribution Panels with a wide range of various rating circuit breakers. Mainly we can provide any ratings of Miniature circuit breakers (MCB) as well as Molded case circuit breakers (MCCB) with three pole, double pole or single pole combinations. To distribute electricity in a lower voltage level such as 415V or 220V these panels are most suitable solutions.

  • Ergonomic Design
  • Long life span, less maintenance, high reliability
  • Generous wiring space for easy installation
  • Distance protection.
  • Transformer differential protection.
  • Line differential protection.
  • Over voltage and under voltage protection.
  • Over current and earth fault protection.
  • Low and high impedance type busbar protection.
  • IEC and ANSI standard.
  • Production up to 400kV.
