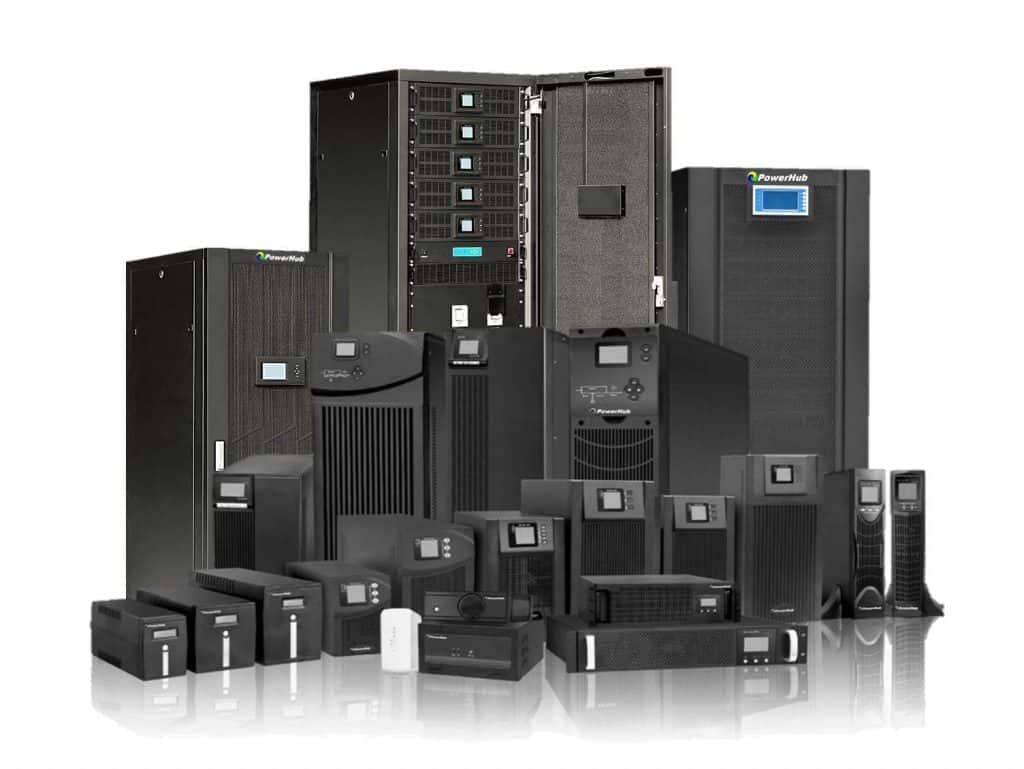

Industrial Online UPS
SINGLE PHASE IN SINGLE PHASE OUT – 1 KVA-10 KVA
- High frequency and true double-conversion
- DSP digital control technology
- Input power factor correction (PFC)
- Wide input voltage range
- Output power factor 0.9 (optional)
- Cold start
- Auto sensing frequency
- ECO mode operation for energy saving
- Selectable output voltage
- Output bypass settable
- 50 Hz / 60 Hz frequency conversion mode available on 6 ~ 10 kVA
- 6 ~ 10 kVA built in output isolation transformer
- Selectable battery low voltage
- Power-on self-test
- Advanced battery management (ABM)
- Short circuit and overload protection
- Automatic charging battery at UPS OFF mode
- Fan speed auto control when loads varies
- Standard RS232 communication port and RJ45 protection
- Optional USB/SNMP communication port
- Optional emergency power off (EPO)
- Optional extension battery bank
- Optional manual bypass on 6 ~ 10 kVA
- Optional N+X redundancy parallel on 6 ~ 10 kVA
THREE PHASE IN SINGLE PHASE OUT – 10 KVA-30 KVA
- On-line double conversion technology
- DSP (Digital Signal Processors) technology
- Suitable for all kinds of loads (resistive, inductive and non-linear loads etc)
- High overload capability (up to 150%)
- Bypass dual DSP control design to enhance more reliability
- Supports dual input, hot standby in series
- Redundant & parallelable with advanced parallel current-sharing control technology
- Cold start and mains start function
- High charging capability: 2 A / 4 A / 6 A / 8 A / 10 A / 12 A selectable (standard), 14 A / 16 A / 18 A / 20 A / 22 A / 24 A selectable (options)
- Standard configuration with output isolation transformer
- Superior protection (surges, short-circuit, overvoltage’s, under voltages, overcharge, reverse connection protection etc.)
- Advanced communications (RS232 and USB ports (standard), SNMP, dry contacts and RS485 (options))
- Other options (parallel kits, input isolation transformer, bypass isolation transformer and harmonic suppressor)
THREE PHASE IN THREE PHASE OUT – 10 KVA-500 KVA
- Online double-conversion with full DSP control
- IGBT inverter with output isolation transformer
- 100% unbalance load capability
- Output power factor 0.9
- Generator compatible
- Support battery cold start and auto-restart when mains power is restored
- ECO mode operation for energy saving
- Superior protection
- 5.7 inches LCD touch screen, friendly human & machine interface
- Front access makes maintenance and replacement simplified (60 ~ 120 kVA)
- Intelligent self-diagnosing function, all kinds of failure protection, large capability of history records storage
- High MTBF (> 200,000 h)
- Low MTTR (< 0.5 h)
- Standard emergency power off (EPO)
- Standard RS232, RS485, dry contacts communication port
- Optional SNMP communication port
- Optional N+X redundancy parallel up to 6 units
- Optional input filter to improve input power factor
